Clinton Outboard Boat Motor Manuals
Jump to: Clinton Service Manual Directory
Clinton Outboards were also labeled → Chief / Apache / Sprite / Peerless
Boat Motor Owner Operation, Workshop Service, Repair and Parts Manuals Directory
Clinton Outboard Boat Motor Model Identification
A system of identification has been established that begins with the Name Plate which was permanently attached to each outboard at the factory. The reference for all Service and Repair will be found on this Name Plate. It is very important that the plate remain with the outboard.
There are three basic things that have to be taken from the outboard name plate to be able to locate the parts needed in the sales - service manual.
1.
Model number.2. Variation number.
3. Type letter.
VARIATION NUMBERS
Due to varied employment of many series, there may be a large number of models. A complete list of these models, referred to as MODEL VARIATIONS, will be found following each Basic Parts List. The model variation list following each Basic Parts List will tell what parts or assemblies are used on each variation - IN ADDITION TO or IN PLACE OF the standard parts found in the Basic Parts List.
How to determine type:
The type letter is very important as it designates when a part design change has taken place and the original part set up for this model outboard will not work. Whenever a part or assembly is not used on all types, this will be noted in the basic model parts list. If no note appears, this means that the part will be found on all types. The type letter on an outboard is always shown as a suffix letter following the model number J 700-1106C is an example as seen in image above.
About: Clinton Outboards
In
1946, The Clinton Machine Company founded by Bill Thomas was established
to manufacture small gasoline engines. First located in Clinton, Iowa,
they purchased a 200,000-square-foot manufacturing facility in Maquoketa,
Iowa, and in 1957 Clinton introduced its own line of 5-horsepower air-cooled
outboard motors. Then in 1958, Clinton Machine Company changed their
name to Clinton Engines Corporation.
Additional Clinton outboard brand names include:
- Apache, Chief, Featherweight, Gulf Queen, Peerless, Sprite
- J5 models may also be badged Apache, Clinton, Sprite
- J6 models also made for Sears, see J6 parts list for variations
- J7 models may also be badged Apache, Chief, Clinton, Peerless, Sprite
- J8 models may also be badged Apache, Chief, Clinton, Peerless, Sprite
- J9 models were produced from 1959-1967 and may have been badged:
- Apache, Chief, Clinton, Featherweight, Gulf Queen, Peerless
- J200 thru J700 also produced for Montgomery Ward "Sea King"
Clinton outboard production was halted in 1980 when Eska purchased the Clinton outboard motor product line. The purchase was intended to consolidate area manufacturers and maintain a strong hold on the market which had dropped due to a lagging economy. In 1986, Eska Outboard Motors went out of production.
Clinton Outboard Boat Motor Resources
- Clinton Outboard Boat Motor Parts - on ebay
- https://everythingaboutboats.org/clinton/
- Clinton Outboard Brochure
- Clinton Outboard Column Extension
Clinton Outboard Service Manual Directory
Sorted by Model Year:
Service Manual Selection Guide
Clinton: Owners Manuals / Parts List / Service Manuals
- Pub. = Publication Date
- HP = Horsepower
- *Manual-Collections* ie. om+pl+sm = Includes:
- owners manual/parts list/condensed service manual
- Note: OEM Mechanics Service Manual Sold Separately, see options below
NOTE: Motors may be labeled Clinton, Chief, Apache, Sprite or Peerless
| OEM - J&K Series Service Manual | ||||||
| Pub. | Models | HP | USD $ | J&K - Service Manual | Notations | |
|---|---|---|---|---|---|---|
| All J & K Series | 1.5-9 | $19.98 | OB2907 |
OEM J&K Series Service Manual |
||
| Pub. | Sea King # -vs- Clinton # | USD $ | Service Manual | Notations | ||
| 1969 and Later |
XTV-27002 XTV-27004 XTV-27003 XTV-27003A XTV-27005 XTV-27005B XTV-27007 XTV-27007B |
J200 J300 J350 J350 J500 J500 J700 J700 |
$19.98 |
seakingclinton1969+sm |
Mont.Ward - Sea King by Clinton |
|
| Master Parts Manual | ||||||
| Pub. | Models | Part # | HP | USD $ | Master Parts Lists | Notations |
| 9/64 | All | S1100 | $9.98 |
S1100 |
Master Parts List | |
| 2/69 | - | 1353-1 | $9.98 |
1353-1 |
Old to New Parts Reference |
|
| *Manual-Collections* | ||||||
| Year | Models | Part # | HP | USD $ | Owner/Parts/Service | Notations |
| 1957 | J7 | *manual- collection* |
$15.98 |
J7J8omplsm |
om+pl+sm | |
| 1958 | J8 | |||||
| Year | Models | Sears # | Disp. | USD $ | Parts/Service | Notations |
| 1965 thru 1968 |
J5-1000 | S1358-1+ J5-Series |
5.76 | $9.98 |
J5--plsm |
Parts List + Service Manual |
| J5-1100 | ||||||
| J5-1101 | ||||||
| J5-1102 | ||||||
| J5-1103 | ||||||
| J5-1104 | ||||||
| J5-1105 | ||||||
| J5-1106 | ||||||
| J5-1107 | ||||||
| J5-1150 | ||||||
| Year | Models | Sears # | Disp. | USD $ | Parts List | Notations |
| 1966 +/- |
J6-1000 | 582-60900 | 5.76 | $4.98 |
J6--pl-- |
Parts List # S1358-1 Note: J6 also made for "Sears" |
| J6-1100 | 582-60940 | |||||
| J6-1101 | 582-60910 | |||||
| J6-1102 | 582-60941 | |||||
| J6-1103 | 582-60920 | |||||
| Year | Models | Part # | Disp. | USD $ | Owner/Parts/Service | Notations |
| 1959 thru 1968 |
J9-1000 | *manual- collection* J9-Series |
5.76 | $15.98 |
j9omplsm |
om+pl+sm |
| J9-1100 | ||||||
| J9-1101 | ||||||
| J9-1102 | ||||||
| J9-1103 | ||||||
| J9-1104 | ||||||
| J9-1105 | ||||||
| J9-1106 | ||||||
| J9-1107 | ||||||
| J9-1108 | ||||||
| J9-1112 | ||||||
| J9-1113 | ||||||
| J9-1114 | ||||||
| J9-1115 | ||||||
| J9-1116 | ||||||
| J9-1150 | ||||||
| J9-1151 | ||||||
| Year | Models | Part # | HP | USD $ | Owner/Parts/Service | Notations |
| 1969 | BJ9 | *manual- collection* 137-0558 |
3.5 | $15.98 |
OB1987 |
om+pl+sm |
| 1969 | AJ9 | *manual- collection* 137-0557 |
5 | $15.98 |
OB1999 |
om+pl+sm |
| 1970 | J-200 | *manual- collection* 137-0564 |
2 | $15.98 |
OB2040 |
om+pl+sm |
| 1971 | J-300 | *manual- collection* 137-0586 |
3 | $15.98 |
OB2091 |
om+pl+sm |
| 1970 thru 1971 |
J-350 | *manual- collection* 137-0558 |
3.5 | $15.98 |
OB2038 |
om+pl+sm |
| 1970 thru 1971 |
J-500 | *manual- collection* 137-0566 |
5 | $15.98 |
OB2042 |
om+pl+sm |
| J-500 | *manual- collection* 137-0587 |
5 | $15.98 |
OB2096 |
om+pl+sm | |
| 1970 thru 1971 |
J-700 | *manual- collection* 137-0567 |
7 | $15.98 |
OB2043 |
om+pl+sm |
| J-700 | *manual- collection* 137-0588 |
7 | $15.98 |
OB2092 |
om+pl+sm | |
| 1975 thru 1978 |
K-150 | *manual- collection* 137-705 |
1.5 | $15.98 |
OB2266 |
om+pl+sm |
| 1972 thru 1973 |
K-200 | *manual- collection* 137-593 |
2 | $15.98 |
OB2131 |
om+pl+sm |
| 1977 thru 1980 |
K-201 6000 Series |
*manual- collection* 137-744 |
2 | $15.98 |
OB2416 |
om+pl+sm |
| 1974 thru 1975 |
K-300 | *manual- collection* 137-688 |
3 | $15.98 |
OB2197 |
om+pl+sm |
| 1976 thru 1980 |
K-350 | *manual- collection* 137-709 |
3.5 | $15.98 |
OB2310 |
om+pl+sm |
| K-350A | N/A | |||||
| K-350 5000 Series |
*manual- collection* 137-739 |
3.5 | $15.98 |
OB2354 |
om+pl+sm | |
| K-350 6000 Series |
*manual- collection* 137-775 |
3.5 | $15.98 |
OB2417 |
om+pl+sm | |
| 1972 thru 1973 |
K-400 | *manual- collection* 137-594 |
4 | $15.98 |
OB2132 |
om+pl+sm |
| 1972 thru 1976 |
K-500 | *manual- collection* 137-595 |
5 | $15.98 |
OB2133 |
om+pl+sm |
| K-500 | *manual- collection* 137-673 |
5 | $15.98 |
OB2198 |
om+pl+sm | |
| 1978 thru 1980 |
K-505 5000 Series |
*manual- collection* 137-740 |
5.5 | $15.98 |
OB2352 |
om+pl+sm |
| K-505 6000 Series |
*manual- collection* 137-776 |
5.5 | $15.98 |
OB2418 |
om+pl+sm | |
| 1976 thru 1980 |
K-550 | *manual- collection* 137-711 |
5.5 | $15.98 |
OB2316 |
om+pl+sm |
| K-550 5000 Series |
*manual- collection* 137-741 |
5.5 | $15.98 |
OB2355 |
om+pl+sm | |
| 1974 thru 1975 |
K-700 | *manual- collection* 137-596 |
7 | $15.98 |
OB2134 |
om+pl+sm |
| K-700 | *manual- collection* 137-686 |
7 | $15.98 |
OB2199 |
om+pl+sm | |
| 1974 thru 1975 |
K-750 | *manual- collection* 137-663 |
7.5 | $15.98 |
OB2200 |
om+pl+sm |

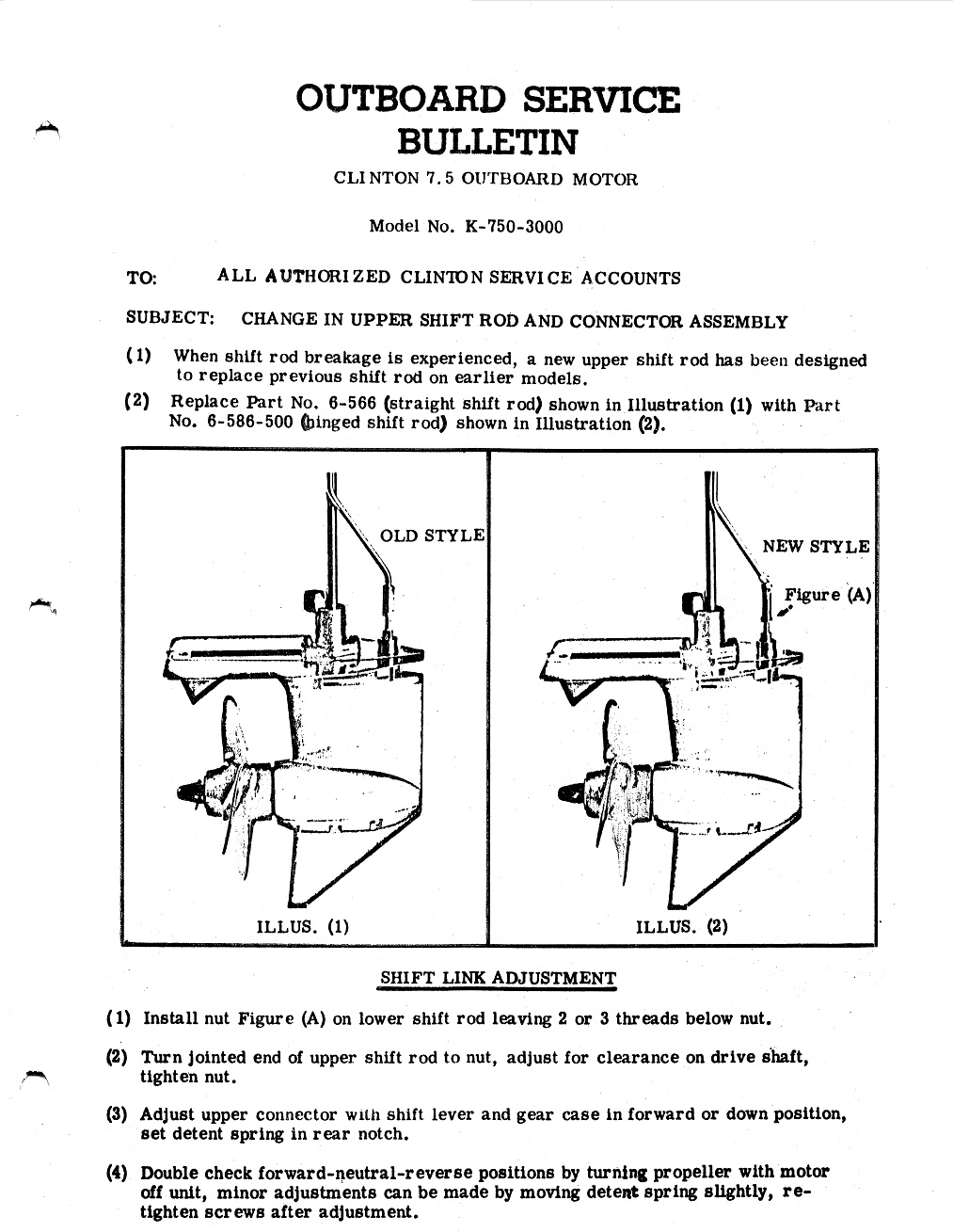

| ?? | K-750 3000 Series |
see bulletin info | ||||
| 1976 thru 1980 |
K-751 | *manual- collection* 137-712 |
7.5 | $15.98 |
OB2311 |
om+pl+sm |
| K-751 5000 Series |
*manual- collection* 137-742 |
7.5 | $15.98 |
OB2357 |
om+pl+sm | |
| K-751 6000 Series |
*manual- collection* 137-793 |
7.5 | $15.98 |
OB2415 |
om+pl+sm | |
| 1976 | K-752 | *manual- collection* 137-713* |
7.5 | $15.98 |
OB2315 |
om+pl+sm |
| 1976 thru 1980 |
K-753 | *manual- collection* 137-714 |
7.5 | $15.98 |
OB2312 |
om+pl+sm |
| K-753 5000 Series |
*manual- collection* 137-743 |
7.5 | $15.98 |
OB2358 |
om+pl+sm | |
| K-753 6000 Series |
*manual- collection* 137-779 |
7.5 | $15.98 |
OB2420 |
om+pl+sm | |
| 1977 thru 1980 |
K-900 5000 Series |
*manual- collection* 137-744 |
9 | $15.98 |
OB2363 |
om+pl+sm |
| K-900 6000 Series |
*manual- collection* 137-780 |
9 | $15.98 |
OB2419 |
om+pl+sm | |
