Sears Outboard Boat Motor Model Identification Guide

Sears & Roebuck contracted with many outboard motor manufacturers from 1914 thru 1996, and over the years this included many brand name changes along the way.

gamefisher Outboard IdentificationSears Outboard Brand Name Changes:

Sears Outboard Identification Guide

Gamefisher Sears & Roebuck Outboard History:

Gamefisher Outboard MotorSears-Roebuck

Gamefisher outboard motors are a line of boat motors sold by Sears & Roebuck for a period of approximately 10 years, between the mid-1980s and mid-1990s. Several different models were manufactured.

Most of the Sears Gamefisher outboard motors sold by Sears & Roebuck were actually manufactured by Tanaka Power Equipment, a company based in Japan. Other companies manufactured models to be sold under the Gamefisher brand as well. These companies included Eska, Mercury Marine and Johnson.

Types: Four different models of the Sears Gamefisher motor were produced over the approximately 10-year history of the brand. These models were the 1.2HP, the 1.75HP, the 3HP and the 5.5HP. Each number represents the corresponding horsepower of the motor. All of the motors were small and black and usually accompanied by distinctive orange lettering along the side.

Identification: Identifying the original manufacturer of your Sears Gamefisher motor is relatively easy. According to Tanaka, the original manufacturer can be deduced by looking at the three-digit code prefix at the start of the motor's serial number. Code prefix 298 indicated a motor built by Tanaka. The 217 indicates Eska, 225 represents Mercury Marine and 488 identifies a motor built by Johnson.

Sears Gamefisher Outboard Boat Motor Resources

Sears Gamefisher Outboard Manual Directory

Gamefisher Outboard Manufacturers over the Years

Code Year Manufacturer
298 1974- Tanaka
217 1968-1986 Eska (Tecumseh)
225 1987-1996 Force (Mercury Marine)
488   Johnson
Auto-redirect to download after payment, and link sent to email address you registered with PayPal

Gamefisher Owner / Service Maintenance / Parts Manuals

  • omp = Owners Operating Instructions / Maintenance Manual / Parts List

Code 298 = Gamefisher by Tanaka 1974-

Year HP $ USD Model Description Cyl. Manufacturer
  1.2 $10.98 298.585130 Operation +
Maintenance
+ Parts List
  Tanaka
  1.2 $10.98 298.586130 Operation +
Maintenance
+ Parts List

  1.2 $10.98 298.586131 Operation +
Maintenance
+ Parts List

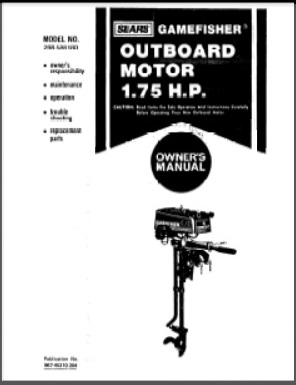

  1.75 $10.98 298.585180 Operation +
Maintenance
+ Parts List

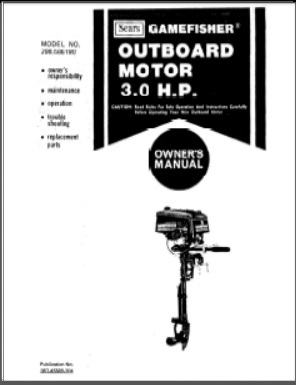

  3.0 $10.98 298.585190 Operation +
Maintenance
+ Parts List

  3.0 $10.98 298.586191 Operation +
Maintenance
+ Parts List

  3.0 $10.98 298.586192 Operation +
Maintenance
+ Parts List

  3.0 $10.98 298.586193 Operation +
Maintenance
+ Parts List


Code 217 = Gamefisher by Eska (Tecumseh) 1968-1986

Year HP Model Description Cyl. Manufacturer
1968 3.5 217.58510     Eska
1969 3.6 217.58511
1969 3.6 217.58512
1970 3.6 217.58513
1969 5 217.58520
1970 5 217.58521
1969 7 217.58530
1970 7 217.58531
1971 7 217.58532
1970 3 217.58540
1971 3 217.58541
1973 3 217.58543
1974 3 217.58544
1970 3.5 217.58550
197? 5 217.58553
1972 3.5 217.58560
1974 3.5 217.58561
1975 3.5 217.58562
1976 3.5 217.58563
1970 4 217.58580
1970 5 217.58610
1970 5 217.58620
1973 9.9 217-58710
1974 9.9 217.58711
1973 10.5 217.58720
1974 10.5 217.58721
1973 15 217.58760
1974 15 217.58761
1971 7.5TG 217.58820
1971 7.5TG 217.58821
1974 7 217-58830
1974 7.5 217.58850
1972 7 217.58870
1972 7.5TG 217.58880
1973 7.5TG 217.58881
1974 7.5TG 217.58882
1973 7.5TG 217.58890
1973 7.5TG 217.58891
1969 5 217.58960
1969 5 217.58961
1969 5 217.58962
1969 4.8 217.58970
1969 4.8 217.58971
1970 5 217.58990
1971 5 217.58991
1971 5 217.58992
1971 5 217.59310
1972 5 217.59311
1971 5.5 217.59430
1972 5.5 217.59431
1973 5.5 217.59432
1971 7TG 217.59440
1972 7.5TG 217.59450
1971 4.5 217.59460
1971 4.5 217.59461
1972 4.5 217.59462
1973 4.5 217.59463
1974 4.5 217.59464
1971 7 217.59480
1973 7.5TG 217.59490
1974 7.5TG 217.59491
1967 3.5 217.59501
1968 5 217.59670
1969 5 217.59671
1969 5 217.59672
1970 5 217.59673
1974 5 217.59680
1968 3.5 217.59860
1969 3.5 217.59861
1970 3.5 217.59862
1968 3.5 217.59900
1974 5.5 217.59980
1977 1.2 217.585120
1978 1.2 217.585121
1979 1.2 217.585122
1975 3 217.585210
1976 3 217.585211
1976 3 217.585220
1977 3.5 217.585230
1978 3.5 217.585240
1979 3.5 217.585241
1976 4 217.585250
1977 4 217.585270
1980 3.5 217.585280
1981 3.5 217.585281
1975 5 217.585410
1976 5 217.585411
1977 5 217.585420
1978 5 217.585430
1979 5 217.585431
1978 5 217.585440
1979 5 217.585441
1980 5 217.585460
1981 5 217.585461
1980 5 217.585470
1981 5 217.585471
1982 5 217.585510
1983 5 217.585511
1975 5.5 217.585710
1982 7.5 217.585750
1983 7.5 217.585751
1978 7.5 217.585810
1979 7.5 217.585811
1978 7.5 217.585830
1979 7.5 217.585831
1980 7.5 217.585840
1981 7.5 217.585841
1977 7.5 217.585850
1976 7 217.585860
1976 7 217.585861
1975 7.5 217.585870
1976 7.5 217.585880
1977 7.5 217.585890
1975 7.5 217.585910
1976 7.5 217.585911
1977 7.5 217.585920
1978 7.5 217.585930
1979 7.5 217.585931
1980 7.5 217.585932
1981 7.5 217.585940
1975 7.5 217.586110
1976 7.5 217.586111
1977 7.5 217.586120
1975 9.9 217.586210
1976 9.9 217.586211
1977 9.9 217.586220
1978 9.9 217.586230
1979 9.9 217.586231
1980 9.9 217.586240
1981 9.9 217.586250
1982
1983
9.9 217.586251
1984 9.9 217.586252
1984 9.9 217.586253
1984 9.9 217.586254
1985 9.9 217.586260
1986 9.9 217.586261
1982
1983
9.9 217.586270
1975 15 217.586310
1976 15 217.586311
1977 15 217.586320
1978 15 217.586330
1979 15 217.586331
1980 15 217.586340
1981 15 217.586350
1982
1983
15 217.586351
1984 15 217.586352
1984 15 217.586353
1985 15 217.586360
1986 15 217.586361
19?? ? 217.586370
1984 5 217.586610
1984 5 217.586611
1984
1985
5 217.586612
1986 5 217-586613
198? 5 217-586614
1984 7.5 217.586750
1984 7.5 217.586751
1984
1985
7.5 217.586752
1986 7.5 217.586753
1986 7.5 217.586754

Code 225 = Gamefisher by Force (Mercury Marine) 1987-1996

Year HP $ USD Model Description Cyl. Manufacturer
1987 9.9   225.587990   2 Force
  15   225.587150   2
1988 5   225.587490   1
  5   225.587500 Long Shaft 1
  7.5   225.581740 Long Shaft 2
  7.5   225.581750   2
  9.9   225.581980 Long Shaft 2
  9.9   225.581990   2
  15   225.581490 Long Shaft 2
  15   225.581500   2
1989 5   225.587491 Long Shaft 1
  5   225.587501   1
  7.5   225.581741 Long Shaft 2
  7.5   225.581751   2
  9.9   225.581981 Long Shaft 2
  9.9   225.581991   2
  15   225.581491 Long Shaft 2
  15   225.581501   2
1990 5   225.587493 Long Shaft 1
  5   225.587503   1
  9.9   225.581983 Long Shaft 2
  9.9   225.581993   2
  15   225.581493 Long Shaft 2
  15   225.581503   2
1991 5   225.587504   1 0E018529 & Below
  9.9   225.581984 Long Shaft 2
  9.9   225.581994   2
  15   225.581494 Long Shaft 2
  15   225.581504   2
1992 5   225.587494 Long Shaft 1
  5   225.587504   1 0E018530 & Up
  9.9   225.581985 Long Shaft 2 0E018904 & Below
  9.9   225.581995   2 0E018904 & Below
  15   225.581495 Long Shaft 2 0E018662 & Below
  15   225.581505   2 0E018662 & Below
1993 5   225.587494 Long Shaft 1
  5   225.587504   1
  9.9   225.581985 Long Shaft 2 0E018905 & Up
  9.9   225.581995   2 0E018905 & Up
  15   225.581495 Long Shaft 2 0E018663 & Up
  15   225.581505   2 0E018663 & Up
1994 5   225.587495 Long Shaft 1
  9.9   225.581986 Long Shaft 2
  9.9   225.581996   2
  15   225.581496 Long Shaft 2
  15   225.581506   2
1995 5   225.587495 Long Shaft 1
  5   225.587505   1
  9.9   225.581987 Long Shaft 2
  9.9   225.581997   2
  15   225.581497 Long Shaft 2
  15   225.581507   2
1995 25 $10.98 225.582500 Short Shaft
Operation +
Maintenance
+ Parts List
3
1995 25 $10.98 225.582590 Long Shaft
Operation +
Maintenance
+ Parts List
3
1996 5   225.587496 Long Shaft 1
  5   225.587506   1
  9.9   225.581988 Long Shaft 2
  9.9   225.581998   2
1996 15 $10.98 225.581498 Long Shaft
Operation +
Maintenance
+ Parts List
2
1996 15 $10.98 225.581508 Short Shaft
Operation +
Maintenance
+ Parts List
2
Gamefisher Outboard Models
