Lauson Outboard Boat Motor Manuals

Jump to: Manual Directory | Service Manuals | Owners Manual & Parts

Boat Motor Owner Operation, Workshop Service, Repair and Parts Manuals Directory

Lauson Sport King Outboard Model Identification

Lauson Outboard Model and Year Guide: 1940-1956

On older 410 models, the ID code may be stamped on the outboards transom mounting bracket somewhere. See Table Below for Yearly Models

Starting in 1948 Lauson single and twin cylinder 4-stroke outboards have a model I.D. tag below the power head attached to the transom clamp right at the top of the transom saddle. Lawson outboard serial numbers break down to specific model years as shown in the groupings list below.

Years	Single Cylinder	Twin Cylinder
1940-1947	A-410 OB410
1948-1949	S-300	T-600
1950	S-350	T-650
1951-1952	S-351	T-651 T-651R
1953-1956	S-353	T-653

About: Lauson Outboards

Lauson outboards were manufactured by the Hart Carter Corporation (engines and farm machinery manufacturer) in New Holstein Wisconsin from 1940 through 1956.

Lauson Manufacturer Hart Carter sold to Tecumseh in 1956, and in 1957 Tecumseh also acquired the Power Products Company – maker of 2 cycle engines.

Tecumseh engines were used on many outboard brands including; Lauson, Sears Gamefisher, Ted Williams and Eska - which also produced private brands for auto, hardware and department store chains.

Lauson Sportking outboards were billed as the "Cadillac" of outboards for fisherman and sported a number of innovative features, the most unique being that all of their outboards utilized 4-cycle engines.

The advantages of 4-cycle engines are high fuel economy and excellent slow speed operation compared to 2-strokes.

Lauson Outboard Boat Motor Production

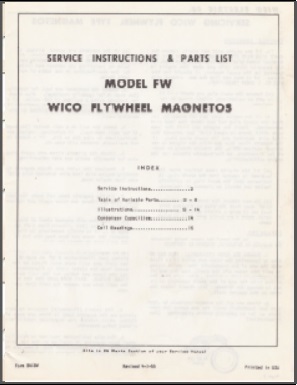

In the early 1940's, Lauson produced the OB-410, a small single cylinder 2.5hp outboard. This was followed by the 300 and 600 series outboard motors beginning in 1948 which generally had Wico magneto Ignition and Tillotson Carburetors

These engines were all 4-Cycle and air cooled by fan blades on the flywheel directing air over the cooling fins on the cylinder. To properly cool, the lower engine covers must be in place for proper air flow or the engine will overheat the coils and cause them to fail, evidence of melted coil insulation is often cited.

The On/Off knob on the front of the engine kills the spark and closes the crankcase breather so the engine can be transported without losing oil.

R and N designations: T651 R, the R designates the F-N-R shift model which Lauson abandoned as troublesome for a simpler F-N "declutching" arrangement "T653 N".

Lauson Outboard Resources

• Lauson Outboard Parts - on ebay
• oddjobmotors.net lauson.htm
• discount-marine-parts.com lauson
• Lauson Engines - Gas Engine Magazine
• Lauson Manufacturing Company History

Models | Years Produced | = Carburetors Used

Carburetors Used On Lauson Outboards

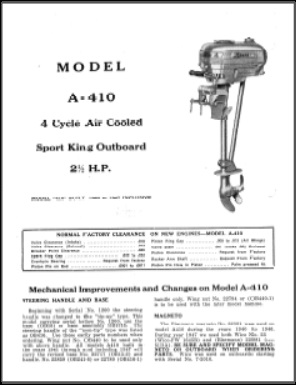

• A-410 1940-1947 = Lauson 22857 or Zenith 10AY5
• S-300 1948-1949 = Lauson 22857 or 23910 or Zenith 10AY5

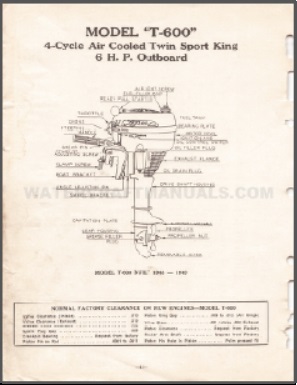

• T-600 1948-1949 = Tillotson YA5A
• S-350 1950 = Tillotson MT6A
• T-650 1950 = Tillotson YA5A
• S-351 1951-1952 = Tillotson MT6A

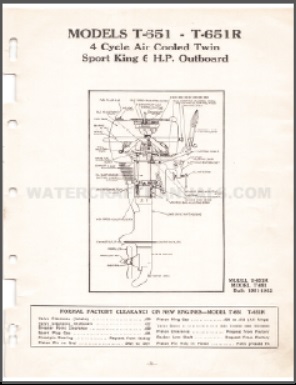

• T-651 + T-651R 1951-1952 = Tillotson YA8A
• S-353 1953-1955 = Tillotson MT6A
• T-653 + T-653R 1953-1955 = Tillotson YA8A

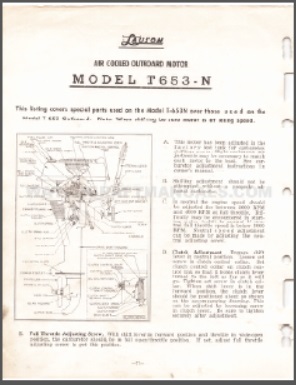

• T-653N 1955-1956 = Tillotson YA8A

Lauson Outboards: Model Guide and Literature

Lauson Repair and Maintenance Documents

Lauson 1940-1956 Outboard Service Manuals

Got Lauson outboard manuals not seen here? we'd like to acquire a copy Contact Us

• sm/pl = service manual / parts list

Year | Model | HP = Horsepower | Cyl. # Cylinders | Manual / Type | Market Name

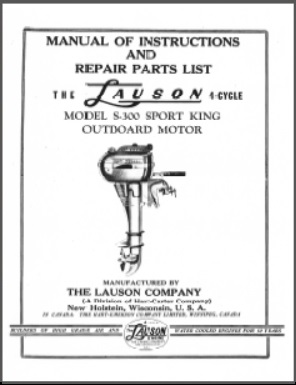

Lauson Owners Operating Instructions Manuals & Parts Lists

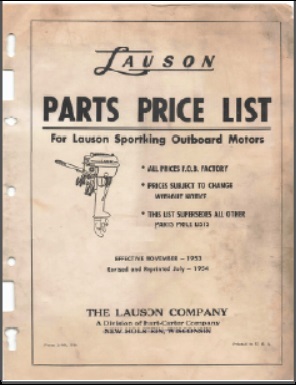

Lauson 1940-1956 Outboard Owners Manuals / Parts Lists

• om/oi = owner operating instructions
• pl/pc = parts list / parts catalog
• tg = troubleshooting guide

Owner Operation and Parts Manuals Sorted by Model Number
