Martin Outboard Motors Service Repair Manuals Directory

Martin Outboard Boat Motor Manuals

Jump to: Manual Directory | Service Manual & Parts | Owners Manual & Parts

Boat Motor Owner Operation, Workshop Service, Repair and Parts Manuals Directory

Martin Outboard Model Identification

See Table Below: Martin Outboard Models and Year Guide: 1946-1954

Martin Outboard ID Plate

About: Martin Outboard Production

George Martin was an outboard racer and in 1946 he designed a radical new outboard motor using automotive-type poppet valves with the first production models introduced under the “Martin” name. These revolutionary new outboards with 2-stroke motor “poppet valve intakes" were produced through an odd royalty based manufacturing agreement with the National Pressure Cooker Company of Eau Claire, Wisconsin (now National Presto Industries, Inc.)

Roughly 300,000 motors were made through 1954. Models included the 20, 40, 45, 60, 66, 75, 100 and 200. Each model number roughly translated to engine horsepower (e.g. 40 and 45 had 4.5 HP)

Martin outboards were a brand that had a lot of potential to be a major player in the outboard world but with stiff competition from OMC, Mercury and others, they closed up shop in the mid 50's

Martin outboards were manufactured from 1946 through 1954. They were very high quality and sported a number of innovative features, including the most important which was the mechanically actuated intake poppet valve

George Martin improved the reed valve concept by using mechanically actuated poppet valves that were timed to stay open longer and seal better than the simple flap on a reed valve. Activated by the engine crankshaft, the design was simple and allowed the motor to run much better at low and mid range speeds.

Parts and Resources

Martin Owner/Parts/Service Manual Directory

Martin Outboard Production Years: 1946, 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954

Auto-redirect to download after payment, and link sent to email address you registered with PayPal

Martin Service, Repair and Maintenance Literature

Martin 1946-1954 Outboard Service Manuals with Parts Lists

smpl = service manual and parts list
N/A = not available, we are interested in acquiring a copy, got one? Contact Us

Service Repair and Parts Manuals Sorted by Model Number

Year	Model	HP	Cyl	$ USD	Service & Parts	Type
All	All	All	All	$5.98	Update Bulletins service-bulletins	All Models See Index
1946 thru 1954	Martin 20	2.3	1	$10.98	martin20smpl	Standard
	Martin 40	4.5	2	$10.98	martin40smpl	Standard
	Martin 45	4.5	2	$10.98	martin45smpl	Synchro-Twist
	Martin 60	7.2	2	$10.98	martin60smpl	Standard
	Martin 60	7.2	2	$10.98	martin60smpl-hs	Hi-Speed
	Martin 66	7.2	2	$10.98	martin66smpl-st	Synchro-Twist
	Martin 75	7.5	2	$10.98	martin75smpl-st	Synchro-Twist
	Martin 75	7.5	2	$10.98	martin75smpl-ts	Aquamatic Twist-Shift
	Martin 100	10	2	$10.98	martin100smpl	Aquamatic Standard
	Martin 100	10	2	$10.98	martin100smpl-ts	Aquamatic Twist-Shift
	Martin 100	10	2	N/A	martin100smpl-hs	Hi-Speed
	Martin - 200-EHO3	20	2	$10.98	martin200smpl	Silver Streak
	Martin - 200-EHA	20	2	$10.98	martin200smpl	Silver Streak

Martin Owners Operating Instructions Literature

Martin 1946-1954 Outboard Owners Manuals with Parts Lists

ompl = owner operation instructions manual and parts list
N/A = not available, we are interested in acquiring a copy, got one? Contact Us

Owner Operating Instructions Manuals and Parts Lists

Year	Model	HP	Cyl	$ USD	Owner & Parts	Type

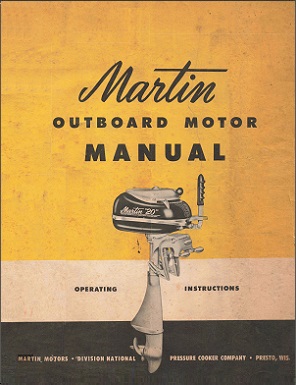

1946 thru 1954	Martin 20	2.3	1	N/A	martin20ompl	Standard
	Martin 20	2.3	1	N/A	martin20ompl-a3	Series A3
	Martin 40	4.5	2	$15.98	martin40ompl	Standard

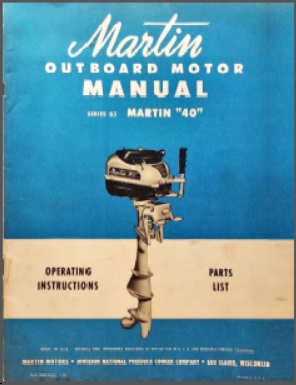

	Martin 40	4.5	2	$15.98	martin40ompl-b3	Series B3
	Martin 45	4.5	2	$15.98	martin45ompl	Synchro-Twist
	Martin 60	7.2	2	$15.98	martin60ompl	Standard

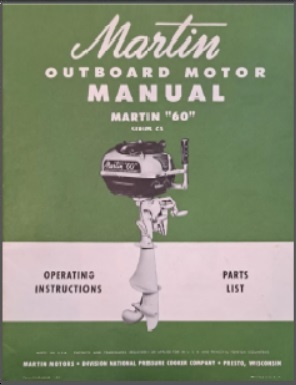

	Martin 60	7.2	2	$15.98	martin60ompl-c5	Series C5
	Martin 60	7.2	2	N/A	martin60ompl-hs	Hi-Speed
	Martin 66	7.2	2	N/A	martin66ompl-st	Synchro-Twist
	Martin 75	7.5	2	N/A	martin75ompl-st	Synchro-Twist
	Martin 75	7.5	2	$15.98	martin75ompl-ts	Aquamatic Twist-Shift
	Martin 100	10	2	N/A	martin100ompl	Aquamatic Standard
	Martin 100	10	2	$15.98	martin100ompl-ts	Aquamatic Twist-Shift
	Martin 100	10	2	N/A	martin100ompl-hs	Hi-Speed
	200-EHO3	20	2	N/A	martin200ompl	Silver Streak
	200-EHA	20	2	N/A	martin200ompl	Silver Streak

Martin Outboard Owner and Service Manual Directory

Model Production Chart and Component Specifications

Model	S.N. # Prefix	Year	Carb	Mag.	Lower Unit	Control Knobs	Color Scheme
20	A	1947 – 48	Tillotson MD9A	Wico 5/8″ core	Single cavitation plate	3 round knobs	Hammer silver: starter, handle, lower unit, tank ring Black: tank, shrouds
20	A	1949 – 54	Tillotson MD9B	Wico 5/8″ core. 1951 on 7/16″ Core	Double cavitation plates, 1951 – 54 – multi vane water pump	2 dog ear knobs	Hammer silver: tank, tank ring, handle, lower unit Black: starter, shrouds
40	B	1947 – 48	Tillotson MD8A	Wico 5/8″ core	Single cavitation plates	3 round knobs	Hammer silver: starter, handle, lower unit Black: tank, shrouds
40	B	1949 – 50	Tillotson MD8B	Wico 5/8″ core	Double cavitation plates	2 dog ear knobs	Hammer silver: tank, tank ring, handle, lower unit Black: starter, shrouds
45	BB	1951 – 52	Carter N 752S or 2021	Wico 7/16″ core	Double cavitation plates, 40 water pump	2 dog ear knobs	Hammer silver: tank, tank ring, handle, lower unit Black: starter, shrouds
45	BB	1953 – 54	Carter N 752S or 2021	Wico 7/16″ core	Double cavitation plates, multi vane water pump	2 dog ear knobs	Hammer silver: tank, tank ring, handle, lower unit Black: starter, shrouds
60	C	1946 -48	Tillotson MD5A, 15A	Early ones scintilla then wico 5/8″ core	Single cavitation plate	3 round knobs	Hammer silver: starter, handle, lower unit Black: tank, shrouds
60	C	1949 – 50	Tillotson MD5B, 15B	Wico 5/8″ core	Double cavitation plates	2 dog ear knobs	Hammer silver: tank, handle, lower unit Black: starter, shrouds
60Hi Speed	CHS	1949 -54? Some Pre 1949	Tillotson MD15B or Carter	Wico 5/8″ core or 7/16″ core	Double cavitation plates – no water pump	1 round knob	Same as above except no shrouds. Pre- 1949 models will have the black tank.
66	TC	1950	Tillotson MD15B	Wico 5/8″ core	Double cavitation plates	2 dog ear knobs	Hammer silver: tank, handle, lower unit Black: starter, shrouds
75ST	CB	1951	Carter N 753S or 2022	Wico 7/16″ core	Double cavitation plates	2 dog ear knobs	Same as above
75TS	CC	1952 – 54	Carter N 753S or 2022	Wico 7/16″ core	Shift (bell housing with inspection plate)	2 dog ear knobs	Same as above except red handle grip
100ST	D	1950 – 51	Carter N 754SA	Wico 5/8″ core	Small cavitation plate with larger one over gearcase	2 dog ear knobs	Black: tank/w raised aluminum letters starter top, shrouds, handle grip hammer Silver: lower unit, starter bottom handle fuel gauge, tank bracket
100Hi Speed	D (DX)	1951 – ?	Carter N ?	Wico 5/8″ core	Hi speed 60 lower unit	2 dog ear knobs	Same as above
100TS	DB	1952 – 54	Carter N 754SA	Wico 5/8″ core	Shift (bell housing with inspection plate)	2 dog ear knobs	Same as above except red handle grip
200SS	EHO or EHA	1953 – 54	Carter N	Wico 5/8″ core	Standard Length with blunt nosecone	2 small round, 1 large round, 1 round/w pointer	Same as above except red handle grip with black main handle
200S	EHO or EHA	1954	Carter N	Wico 5/8″ core	Short with pointed nosecone	2 small round, 1 large round, 1 round/w pointer	Same as above

Martin Aquamatic Twist Shift Outboard Motors
