Caille Outboard Boat Motor Manuals
Jump to: Caille Service Manual Directory
Boat Motor Owner Operation, Workshop Service, Repair and Parts Manuals Directory
Caille Boat Motor Model Identification
To identify Caille outboard motors, first look for a serial numbers stamped into the transom bracket as often this will be the easiest way to determine what model you have. Caille produced many types and models with various purposes including rowboat motors, marine propulsion engines and liberty drive units.
Specific features can help, such as the bulbous exhaust muffler assembly, gear-driven magneto etc. Common models include the Caille Neptune, Liberty Twin, and Caille Racer, each with distinct characteristics. Check our Caille outboards table below, and this pdf Caille model guide to help match your motor to the various models.
About: Caille Outboards
The Caille Perfection Motor Company (a part of the Caille Brothers Manufacturing Company) produced the CAILLE line of stationary and portable marine propulsion engines from 1912 to 1934. They became one of the world’s largest producers of small rowboat motors in the early 1900's. Caille Row-Boat Motors were produced in Detroit, Michigan with a variety of innovative features that made their outboards very unique.
Caille Boat Motor Resources.
- Caille Outboard Boat Motor Parts - on ebay
- Caille Outboard Group on Facebook
- Caille Manufacturing History
- Caille 5-Speed / Pennant Restoration

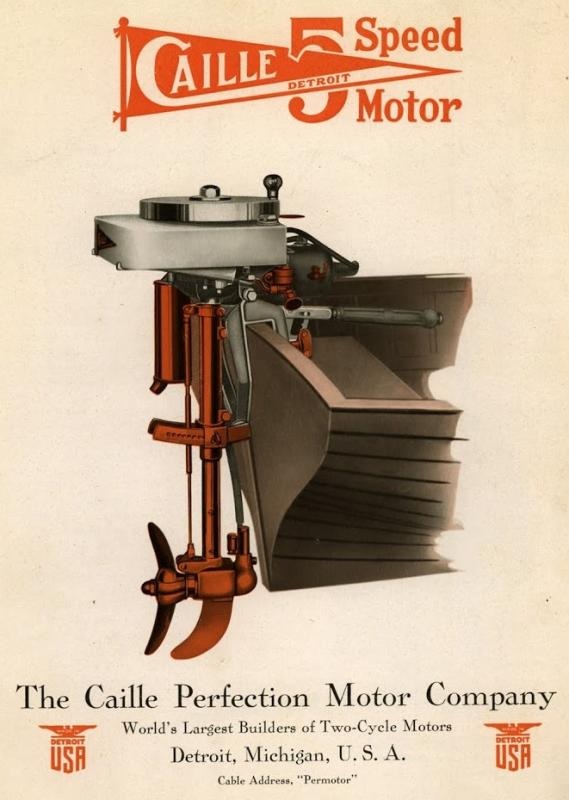

The Detroit-based Caille Brothers Manufacturing Company produced their line of outboard motors under the Caille Perfection Motor Co. brand.
Both brothers were practical mechanics and skilled artisans demonstrating a distinctive ability for the invention of mechanical devices. Alongside their own Caille Inboard and Outboard Motors, they also produced “badge motors” for other vendors, including:
| Badge Brand | Vendor | Locale |
|---|---|---|
| American | American Engine Co. | Detroit‚ MI‚ USA. |
| Brooks | Brooks Mfg. Co. | Saginaw‚ MI‚ USA. |
| Columbian | Cullen Motor Co. | Detroit‚ MI‚ USA. |
| Detroit | Detroit Engine Works | Detroit‚ MI‚ USA. |
| Emmons | Emmons Specialty Co. | Detroit‚ MI‚ USA. |
| Glideaway | W. H. Mullins Co. | Salem‚ OH‚ USA. |
| Michigan | Michigan Wheel Co. | Detroit‚ MI‚ USA. |
| Motorgo (Junior & Senior) | Sears‚ Roebuck and Co. | Chicago‚ IL‚ USA. |
| Neptune (1926) | Montgomery Ward & Co. | Chicago‚ IL‚ USA. |
| Pennant (1926) 5-Speed | For Non-Caille Dealers | 5-Speed USA |
| Scout (1926) 1-Speed | For Non-Caille Dealers | 1-Speed USA |
| Sweet (Waterman / Caille) | Sweet Mfg. Co. | Detroit‚ MI‚ USA. |
| Williams | Williams Marine Engines | Saginaw, MI, USA |

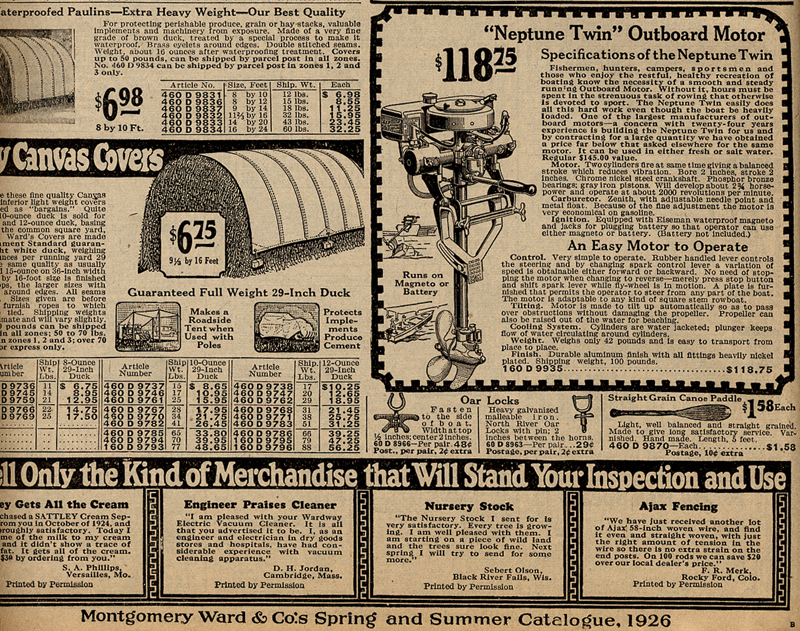

The Pennant was a "sub brand" of Caille that could be purchased for retail sale by non-Caille dealers. The Caille Scout is essentially a Pennant without the 5 speed. The Sweet was a badge motor first made by Waterman and later by Caille. The 1926 Neptune is a single speed 2.75hp twin rowboat motor produced for Montgomery Ward catalog sales.
Caille Outboard Motor Manuals Directory
Sorted by Model Year:
Caille: Owners Manuals / Parts Lists / Service Manuals
| Year | Model | HP | Manual / Type | $ USD | Name / Description |
|---|---|---|---|---|---|
| 1913 | N/A | 2.0 | Rudder w/o Skeg | ||
| 1914 | N/A | 2.0 | Rudder w/Skeg | ||

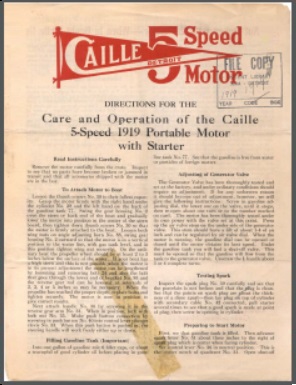

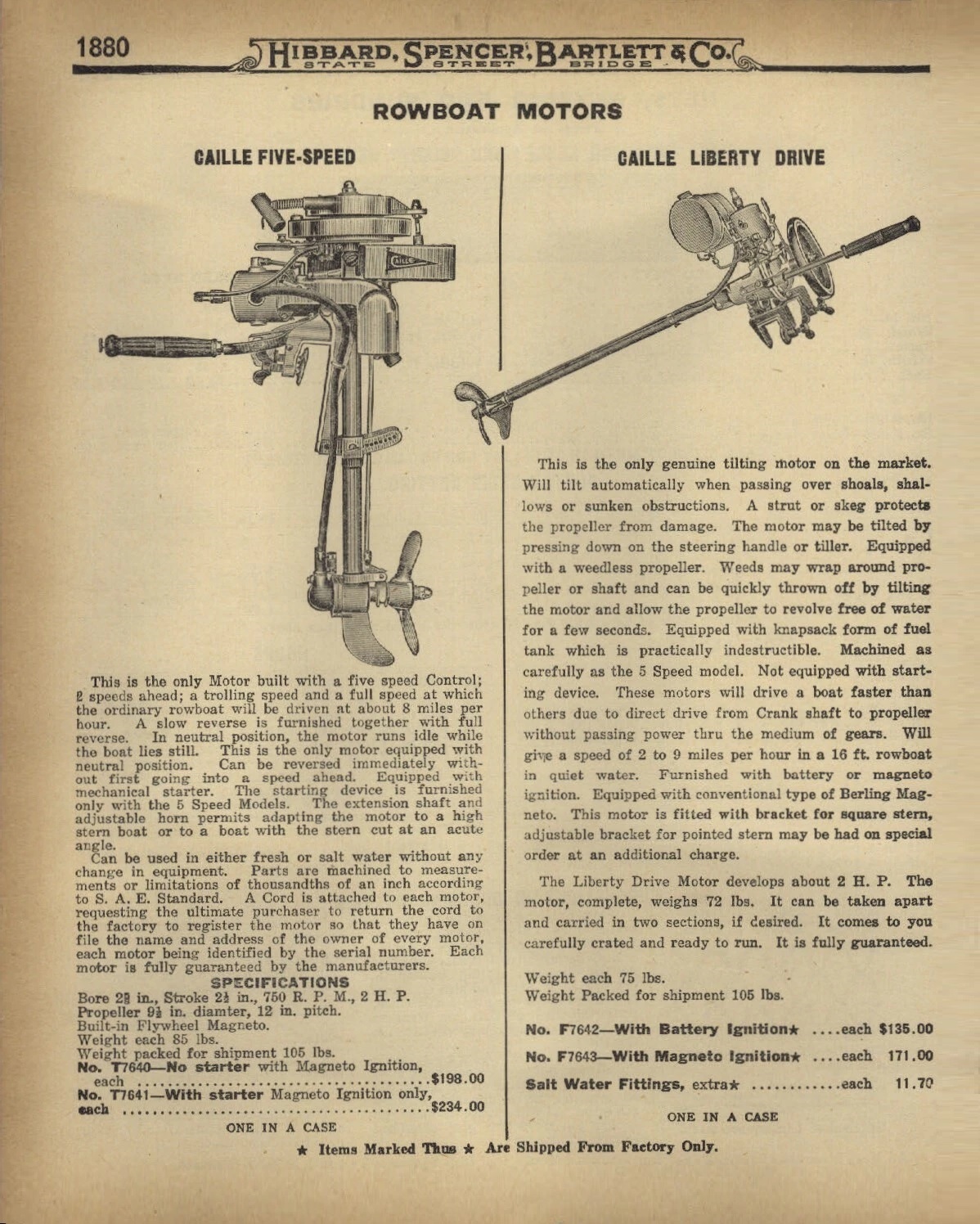

| 1915-25 | 5SS | 2.0 | Owner / Parts caille5ss  |
$10.98 | Single 5 Speed |
| 1916 | N/A | 3.5 | Heavy Single | ||
| 1917-25 | N/A | 2.0 | Neptune | ||
| 1917-25 | N/A | 2.0 | Neptune w/Canoe Mount | ||

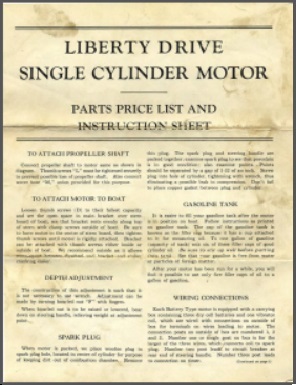

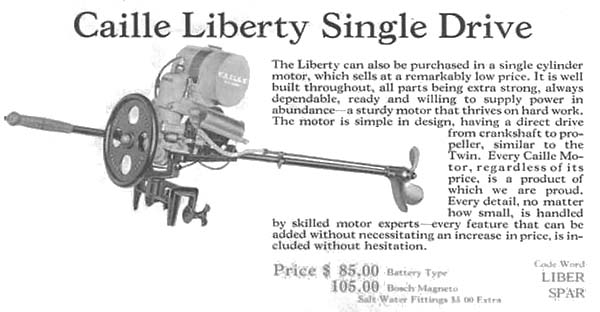

| 1917-31 | LS21 | 2.0 | Parts / User caille21ls  |
$10.98 | Liberty Single - LS21 |
| 1917-31 | LD21 | 2.0 | Owner / Parts caille21ld  |
$10.98 | Liberty Drive Single LD 21 |

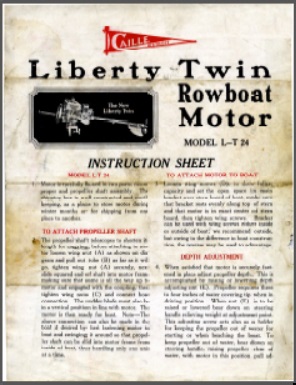

| 1924-28 | LT24 | 4.0 | Instructions caille24lt  |
$5.98 | Liberty Twin - LT24 |

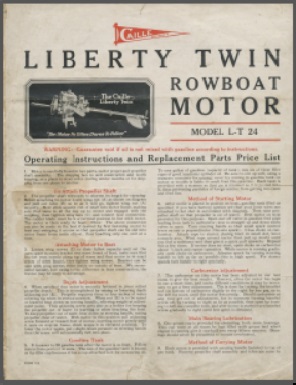

| 1924-28 | LD24 | 4.0 | Owner / Parts caille24ld  |
$10.98 | Liberty Drive Twin LT 24 |

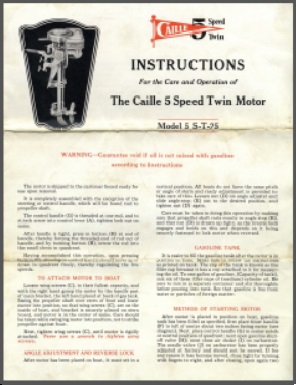

| 1925-27 | 5ST25 | 2.75 | Owner / Parts caille5st25  |
$10.98 | 5-Speed Twin S-T-25 - ie. "Pennant" |
| 1926 | 2.75 | Scout = Pennant without 5-speed |
|||
| 1927 | 5SMT | 4.5 | Parts Catalog caille5smt  |
$10.98 | 5-Speed Master Twin |
| 1928 | 10 | 2.75 | Junior Twin | ||
| 1928 | 10 | 2.75 | Junior Twin 5-Speed | ||

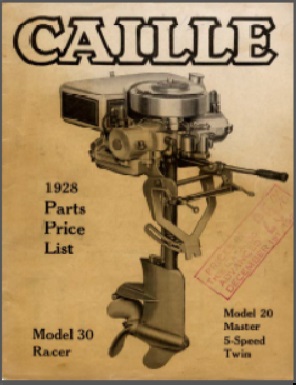

| 1928 | 20 | 6.0 | Parts Catalog caille2030  |
$10.98 | 20 5-Speed Master Twin |
| 1928 | 30 | 10 | Model 30 Racer | ||

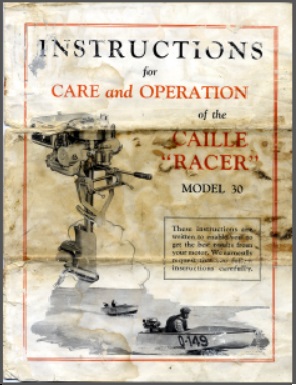

| 1928 | 30 | 10 | Care / Operator caille30  |
$5.98 | Racer Model 30 "poor condition" |
| 1929 | 12 | 2.75 | 5-Speed Junior Twin | ||
| 1929 | 22 | 6.0 | 5-Speed Master Twin | ||

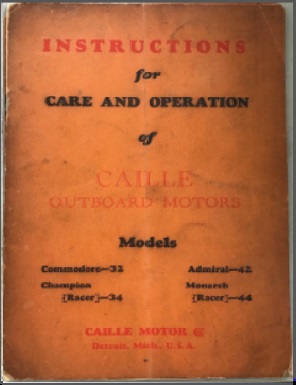

| 1929 | 32 | 12 | Care / Operator caille29om  |
$10.98 | Commodore 32 |
| 1929 | 34 | 14 | Champion Racer 34 | ||
| 1929 | 42 | 18 | Admiral 42 | ||
| 1929 | 44 | 20 | Monarch Racer 44 | ||

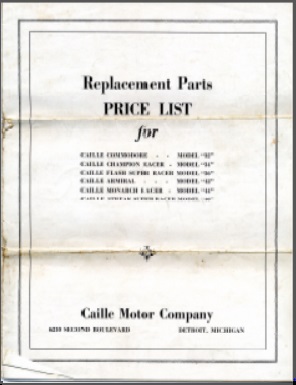

| 1929 | 32 | 12 | Parts Catalog caille29pl  |
$10.98 | Commodore 32 |
| 1929 | 34 | 14 | Champion Racer 34 | ||
| 1929 | 36 | 16.5 | Flash Super Racer 36 | ||
| 1929 | 42 | 18 | Admiral 42 | ||
| 1929 | 44 | 20 | Monarch Racer 44 | ||
| 1929 | 46 | 22 | Streak Super Racer 46 | ||

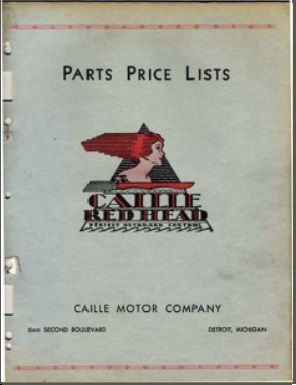

| 1930 | Red- Head |
All | Parts Price List cailleppl  |
$10.98 | Parts Price List |
| 1930 | 14 | 6.0 | Companion Red Head | ||
| 1930 | 15 | 6.0 | Utility Red Head With Multiflex |
||
| 1930 | 25 | 15 | Utility Red Head | ||
| 1930 | 26 | 15 | Red Head Multiflex | ||
| 1930-32 | 40 | 17 | Class B Racer | ||
| 1930 | 45 | 21 | Red Head Racer Class A |
||
| 1930 | 47 | 21 | Red Head Multiflex | ||
| 1930-32 | 50 | 23 | Red Head Racer Class C |
||
| 1931-34 | 16 | 8.0 | Red Head Utility Class A |
||
| 1931-34 | 15 | 8.0 | Red Head Utility Class A Multiflex |
||
| 1933 | 15 A | 10 | Red Head Multiflex | ||

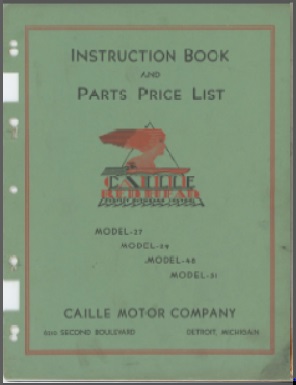

| 1931-34 | 27 | 15 | Owner / Parts caille2751  |
$10.98 | Red Head Utility Class B = 16hp |
| 1931-34 | 29 | 16 | Red Head Utility Class B Multiflex |
||
| 1931-34 | 48 | 21 | Red Head Utility Class C = 23hp |
||
| 1930/34 | 51 | 23 | Red Head Utility Class C Multiflex |
||
| 1931-32 | 28 | 15 | Utility Red Head | ||
| 1931 | 35 | 12 | Red Head Racer | ||
| 1931-32 | 49 | 21 | Utility Red Head | ||

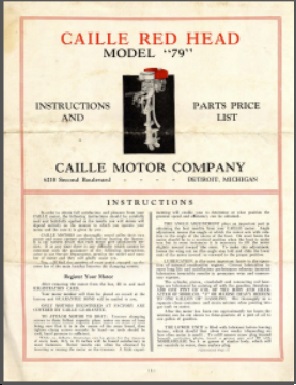

| 1932-34 | 79 | 4.0 | Owner / Parts caille79  |
$10.98 | Red Head Model 79 |

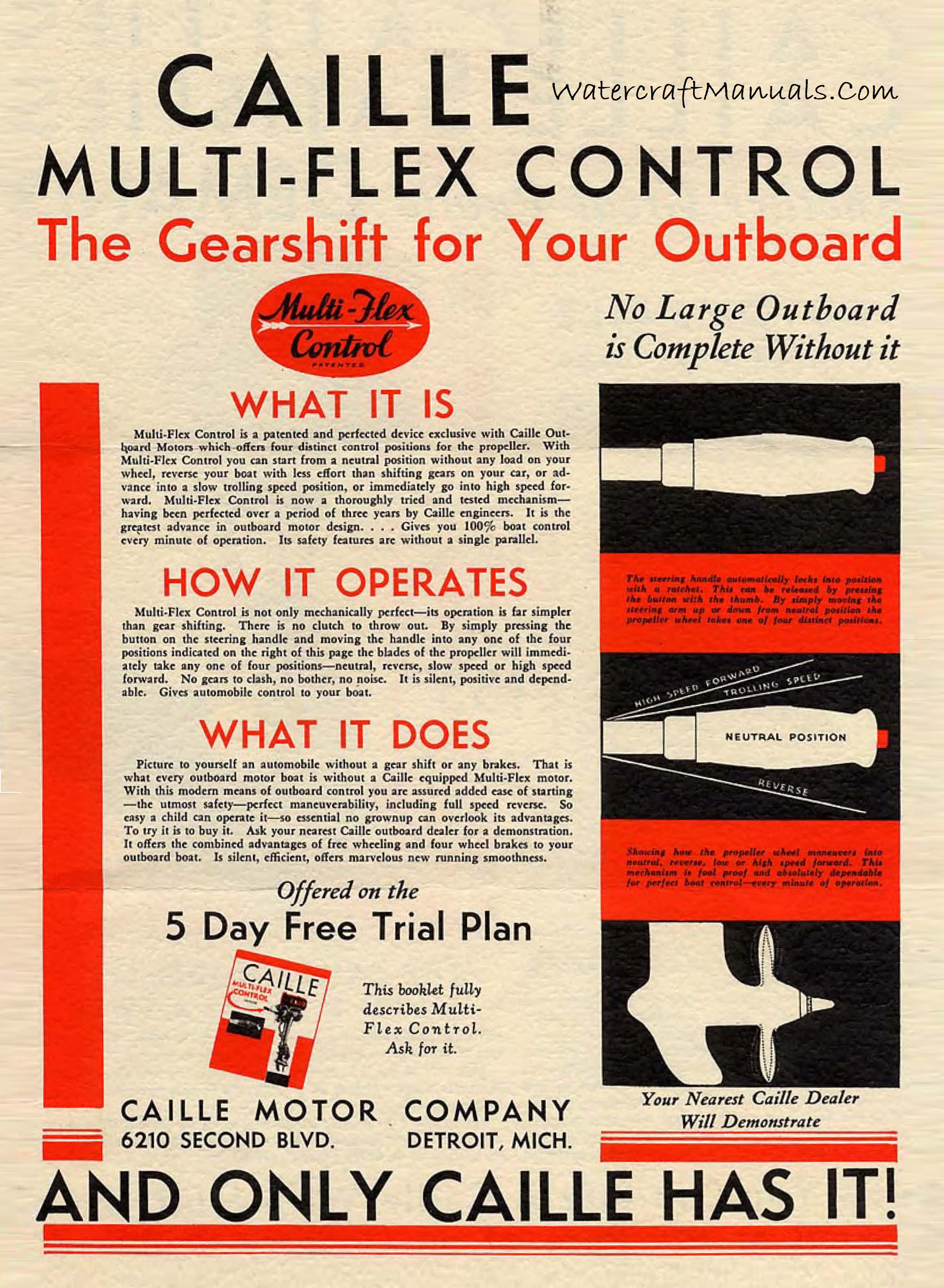

| with shift = models with Caille Multi-Flex gear shift control | |||||
| 1934 | 88 | 2.25 | 88 Single | ||
| 1934 | 99 | 5.5 | 99 Super Single | ||
| 1934 | 109 | 2.25 | 109 Single is 88 with shift |
||
| 1934 | 119 | 5.5 | 119 Super Single is 99 with shift |
||
| 1934 | 129 | 10 | 129 Sport Model | ||
| 1934 | 144 | 10.09 | 144 Advance Twin | ||
| 1934 | 169 | 10.09 | 169 Multiflex- is 144 with shift |
||
| 1934 | 197 | 16.11 | 197 De Luxe Twin | ||
| 1934 | 232 | 16.11 | 232 De Luxe Twin- is 197 with shift |
||
| 1934 | 249 | 23 | 249 Super Twin | ||
| 1934 | 296 | 23 | 296 Super Twin- is 249 with shift |
||
